Denmark KOGE Thermal Power Station Project

Project name: Denmark KOGE Thermal Station

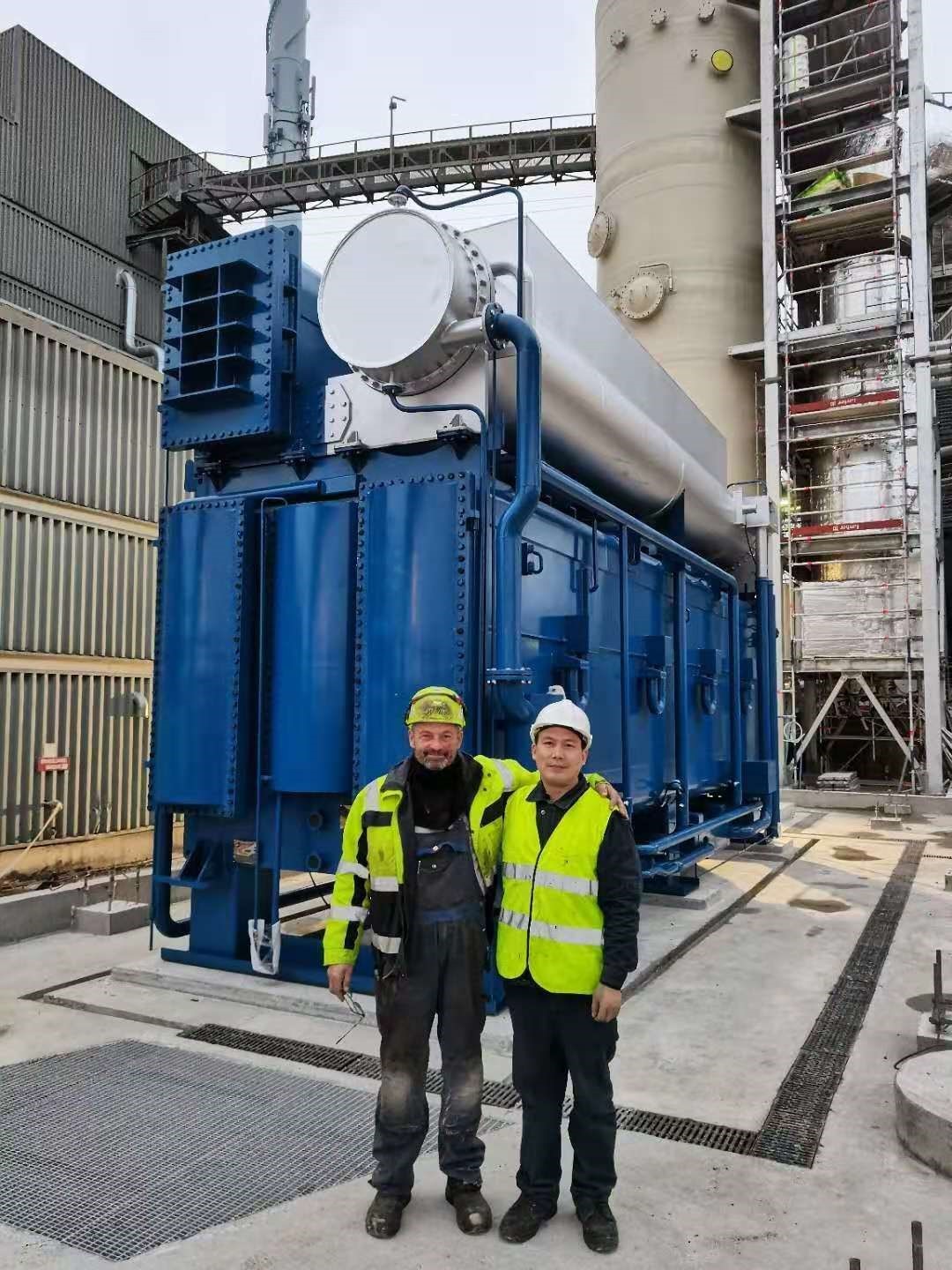

Equipment selection: 1 unit 12MW LiBr Absorption Heat Pump


General Introduction

Denmark Koge thermal power station, through the incineration of biomass materials such as sawdust, generate and provide heating and power for the city.

In 2020, the station decided to add a new heating system. This project plans to use the exhaust condensing heat recovery system and Hope Deepblue LiBr absorption heat pump to deeply recycle the exhaust waste heat from the incineration process, to improve the heating efficiency and heating capacity, and sell heating to the Copenhagen urban heat grid.


Technical Data

Heating capacity: 12MW/unit                                      Driven steam pressure: 0.3MPa(G)

Qty: 1 unit                                                                    COP: approx 1.7

District heating water: 56-59/69-76.8°C                      Dimension: 9300*3100*5350mm

Transportation weight: 65.4t/unit

Steam consumption: 1.562 -2.872kg/s
